Description

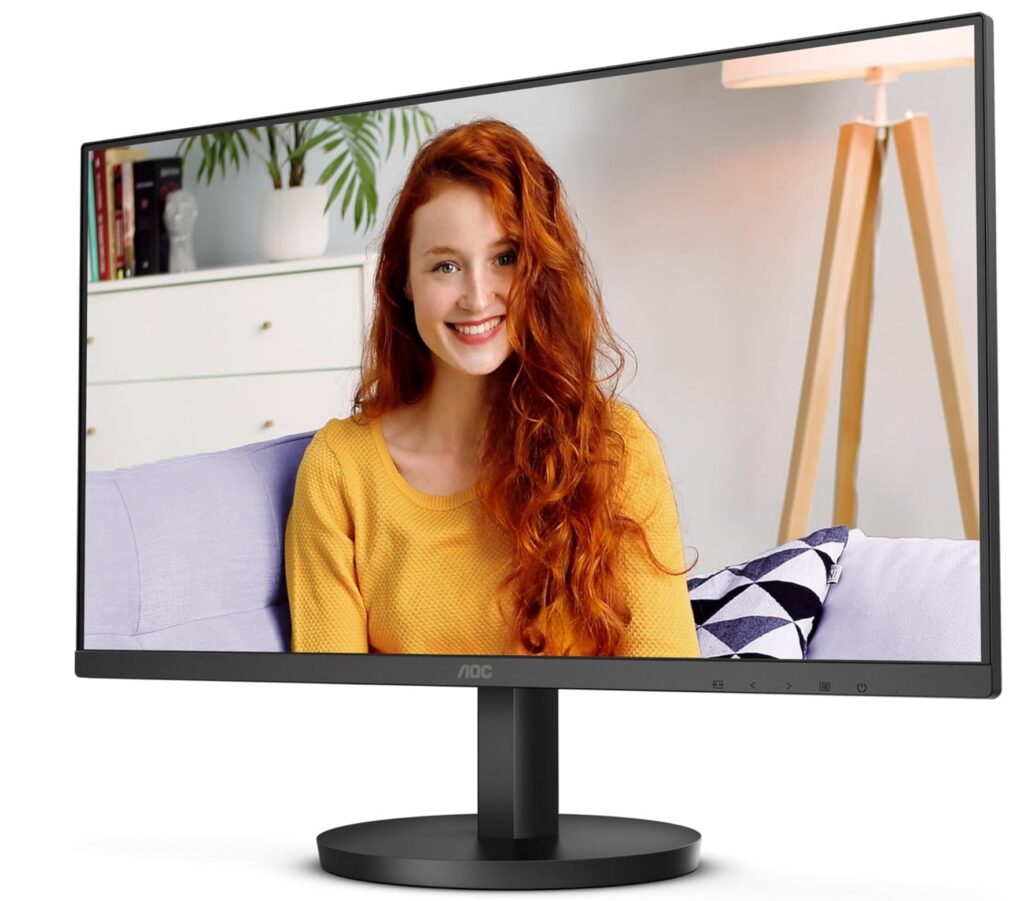

24B3HA3 is a Full HD display with IPS wide viewing angle, Incredible, 120Hz refresh rate, and 1ms response time, 3-side frameless. This IPS display deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions.

Specifications
Panel 23.8′ / IPS
Pixel Pitch (mm) 0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm) 527.04 (H) × 296.46 (V)
Brightness (typical) 250 cd/m²
Contrast Ratio 1300 : 1 (typical) 20 Million : 1 (DCR)
Response Time 4ms GtG / 1ms MPRT
Viewing Angle 178° (H) / 178° (V) (CR > 10)
Color Gamut NTSC 83% (CIE1976) / sRGB 100% (CIE1931)
Color Accuracy –
Optimum Resolution 1920 × 1080 @ 100Hz – HDMI, 1920 × 1080 @ 60Hz – VGA
Display Colors 16.7 Million
Signal Input VGA × 1, HDMI 1.4 × 1
HDCP Version –
USB Hub No
Power Supply 100 – 240V～1.5A, 50 / 60Hz
Power Consumption (typical) 30W
Speakers 2W × 2
Line in & Earphone Earphone × 1
Wall-Mount 100mm × 100mm
Adjustable Stand Tilt: -5° ~ 23°
Product without Stand (mm) 316.2 (H) × 542.4 (W) × 44.6 (D)
Product with Stand (mm) 412.1 (H) × 542.4 (W) × 202.3 (D)
Packaging (mm) 394 (H) × 614 (W) × 126 (D)
Product without Stand (kg) 2.65
Product with Stand (kg) 2.97
Product with Packaging (kg) 4.65
Cabinet Color Black
Regulatory Approvals CE / FCC / RoHS
What’s in the box HDMI Cable 1.8m × 1
