Description

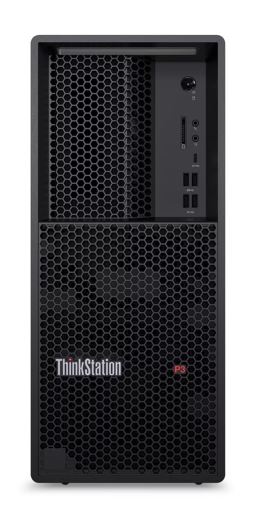

LENOVO ThinkStation P3 Tower i7-14700K 32GB 1TB SSD + 2TB SATA HDD NVIDIA RTXA2000-16GB WIN 11P Intel® UHD Graphics 770 RJ-45 WIFI6E BT KB+M 3YR WTY

PERFORMANCE
Processor Intel® Core i7-14700K, 20C (8P + 12E) / 28T, Max Turbo up to 5.6GHz, P-core 3.4 / 5.5GHz, E-core 2.5 / 4.3GHz, 33MB
AI PC Category AI-Ready Workstations
Processor Sockets 1x FCLGA1700
Integrated Graphics Integrated Intel® UHD Graphics 770
Discrete Graphics 1x NVIDIA® RTX 2000 Ada Generation 16GB
Chipset Intel® W680 Chipset
Memory 2x 16GB UDIMM DDR5-4400 Non-ECC
Memory Slots 4 DDR5 DIMM slots, 2 channels capable
Max Memory Up to 128GB (4x 32GB DDR5 UDIMM)
PCIe NVMe Controller Integrated NVMe® Controller
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
SATA Controller Onboard Intel® RSTe SATA RAID
SATA/SAS Drive 1x 2TB HDD 7200rpm 3.5′ SATA6Gb/s
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Power Supply 750W Platinum Fixed
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Supports four PCIe® slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. • Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width • Slot 2: PCIe 3.0 x1, full height, half length, 25W • Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W • Slot 4: PCIe 3.0 x1, full height, half length, 25W
Dimensions (WxDxH) 180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches)
Weight 13.61 kg (30.00 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet None
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.1, vPro®
Card Reader None
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Optional Front Ports (configured) –
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Cover Lock None
Cable Lock No Cable
Chassis Intrusion Switch None
MANAGEABILITY
System Management Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
SOFTWARE
Operating System Windows® 11 Pro, English
