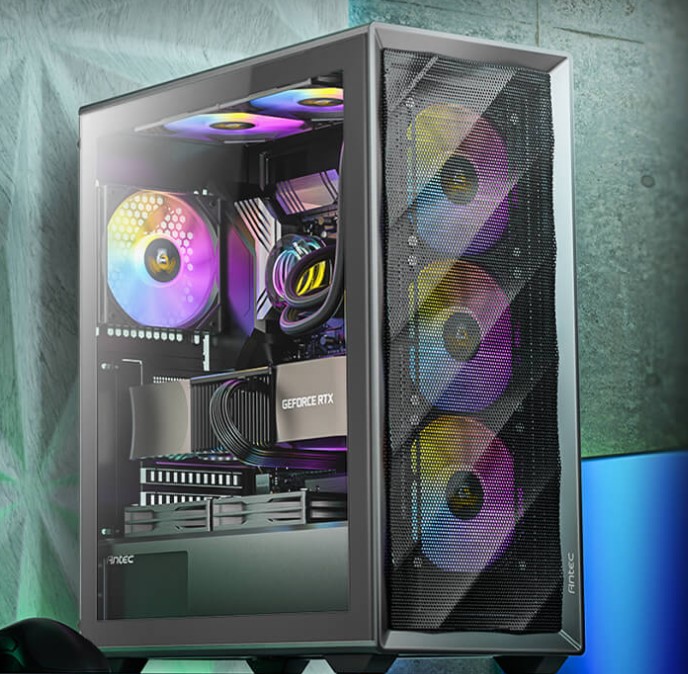

Antec AX85 ARGB Mid-Tower Gaming Case Unique Design & Powerful Heat Dissipation
The AX85 ARGB features a unique design and excellent cooling performance. The full tempered glass side panel allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.
SPECIFICATIONS
main spec
Dimensions 393 x 205 x 485mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX
Front Access & Controls Power, LED Control Button, USB 3.0 x 2, Headphone/Mic Combo Jack
Side Panel 4MM Tempered glass
Drive Bays
Expansion Slots 7
3.5′ /2.5′ 2 / 2
2.5′ 2
Fan Support
Front 3 x 120mm / 2 x 140mm
Top 2 x 120mm / 2 x 140mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 240mm
Rear 120mm
Clearance
Max GPU Length ≤ 340mm (with front fan)
≤ 370mm (without front fan)
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 200mm (with HDD)
(Include cable) ≤ 370mm (without HDD)
