Description

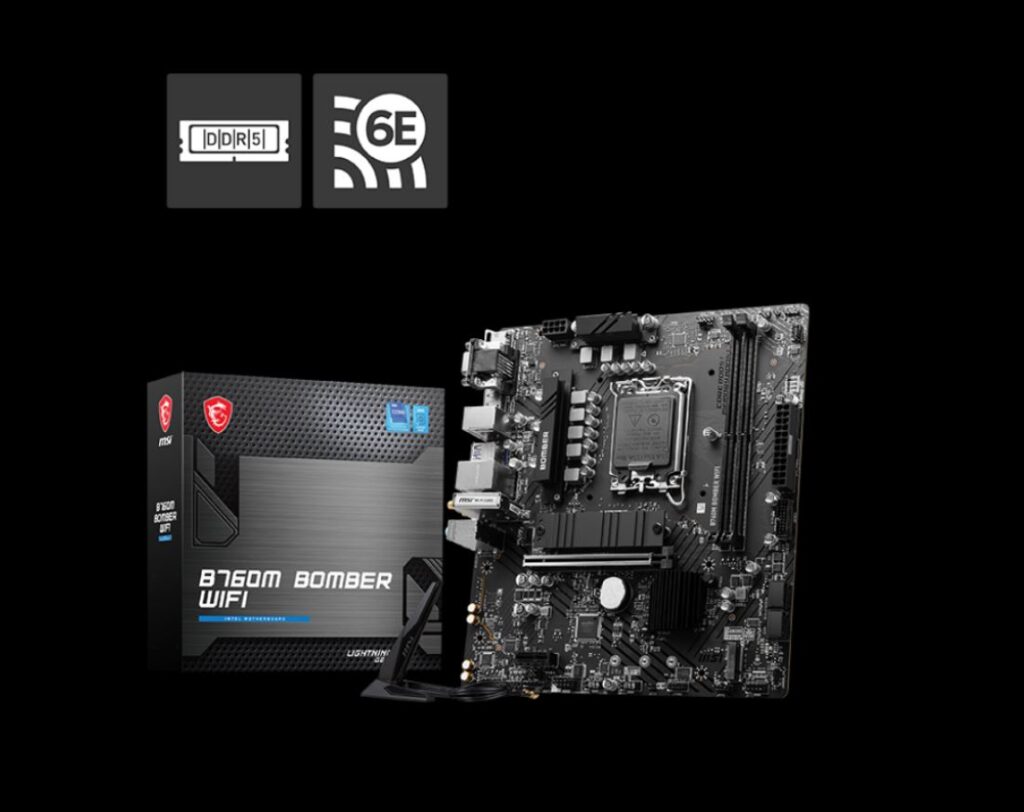

MSI PRO B760M BOMBER WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.09

Chipset INTEL B760

CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

torage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info mATX
220mmx243.84mm
