Description

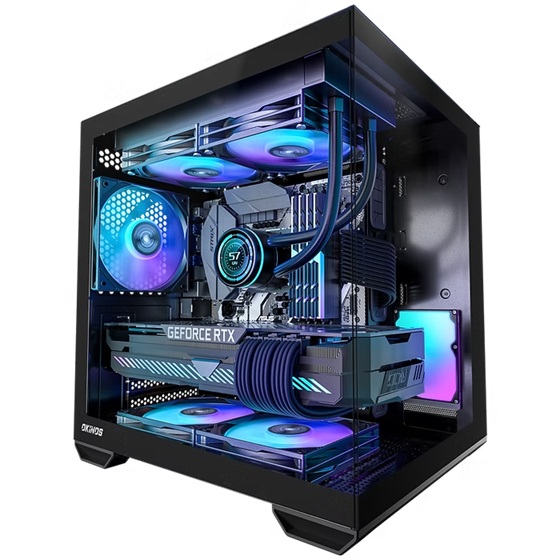

OKINOS Mirage 4 mATX ARGB Case, ARGB controller, 4x ARGB Fans. Ultimate thermal Black, Mini Towe, Steel, Micro-ATX, 2xUSB3.0, 1×3.2 Gen2

SPECIFICATION

Model Mirage 4 ARGB
Color Black
Dimensions 346 x 275 x 354mm (DWH)
Form Factor Mini Tower
Materials Steel
Mainboard Support Micro-ATX , ITX
Front Access & Controls Power, LED Control Button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel Tempered Glass Side Panel

Drive Bays
Expansion Slots 5
3.5′ 1
2.5′ 3

Fan
Top 2 x 120mm
Bottom 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 x 120 H12R ARGB 3 Pin reserve fans at bottom + 1 x 120 H12 ARGB 3 Pin fan in rear + 4-port ARGB fan controller

Radiator Support
Top 240/120mm
Rear 120mm

Clearance
Max GPU Length ≤325mm
Max CPU Cooler Height ≤165mm
Max PSU Length ‘ (Include cable)≤240mm’

Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.45 Kg
Gross Weight 5.69 Kg

Special Features
1. 270-degree panoramic design enhances aesthetics and openness, featuring a tool-free tempered glass panel for easy access and added protection.

2. Vertical airflow system supports up to 5 fans, optimizing bottom-to-top thermal management for superior cooling efficiency.

3. The right panel is equipped with a 1.2mm mesh, enhancing airflow for superior cooling performance.

4. Pre-installed 2 x 120mm H12R ARGB 3-Pin at the bottom, and 1 x 120mm H12 ARGB 3-Pin at the rear, along with a 4-port ARGB fan controller and a 1-to-3 3-Pin splitter cable.

5. 5-slot PCIe layout improves GPU compatibility and improves cooling space.
6. Pre-locked copper standoffs and an included accessory allow for easy installation and removal.

7. Full-size magnetic dust filters on the top and bottom ensure clean airflow and easy maintenance.

8. Generous cable management space: 95mm on the right and 45mm on the left, ensuring a seamless and hassle-free building experience.

9. Equipped with a cable grommet for a sleek and tidy build.’
