Description

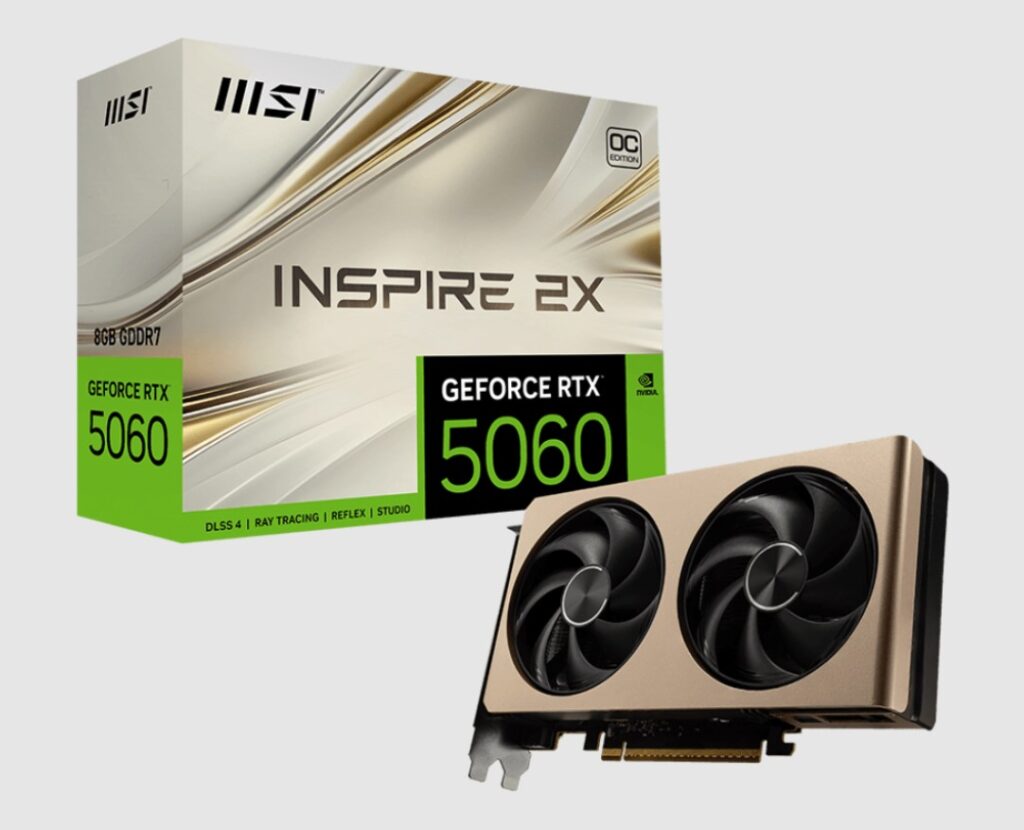

MSI nVidia GeForce RTX 5060 8G INSPIRE 2X OC, PCI Express® Gen 5 x16, Boost: 2535 MHz, CUDA 3840 Units, 8GB GDDR7,. HDMI™ x 1 (emabargo)

SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 8G INSPIRE 2X OC
Model Name G506-8I2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8 GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 145W
Power connectors 8-pin x 1
Recommended PSU TBD
Card Dimension (mm) 204 x 117 x 41 mm
Weight (Card / Package) TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Metal Backplate
A sturdy metal backplate strengthens the graphics card while the
airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
