Description

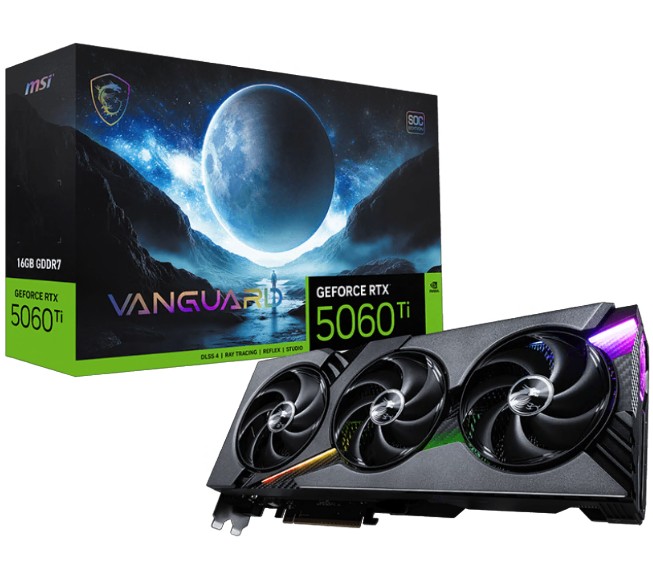

MSI nVidia GeForce RTX™ 5060 Ti 16G VANGUARD SOC, Boost: 2588 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1 (embargo)

Marketing Name GeForce RTX™ 5060 Ti 16G VANGUARD SOC
Model Name G506T-16VGS
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5
Core Clocks
Extreme Performance: 2602 MHz (MSI Center)
Boost: 2588 MHz (GAMING & SILENT Mode)
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16 GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300W
Power connectors 16-pin x 1
Recommended PSU 750W
Card Dimension (mm) 357 x 151 x 66 mm
Weight (Card / Package) 1945 g / 2844 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
