Description

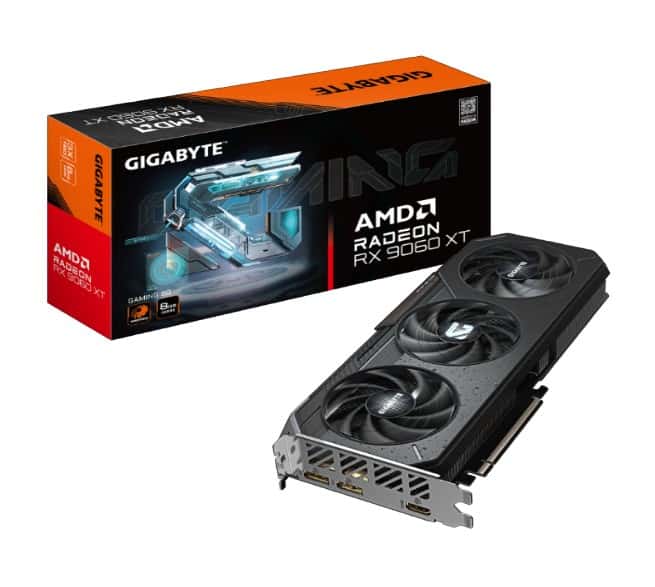

Gigabyte Radeon™ RX 9060 XT GAMING 8GB, 20 Gbps, 128 bit, PCI-E 5.0, DirectX 12 API, PSU 450W, DisplayPort 2.1a x2 HDMI 2.1b x1 (embargo)

SPECIFICATION

Graphics Processing
Radeon RX 9060 XT

Core Clock
Boost Clock* : up to 3130 MHz
Game Clock* : up to 2530 MHz

Stream Processors
2048

Memory Clock
20 Gbps

Memory Size
8GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
3

Card size
L=281 W=118 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
450W

Power Connectors
8 pin*1

Output
DisplayPort 2.1a x2
HDMI 2.1b x1

FEATURES
•Powered by Radeon™ RX 9060 XT
•Integrated with 8GB GDDR6 128bit memory interface
•WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
•RGB Lighting
•Reinforced structure
