Description

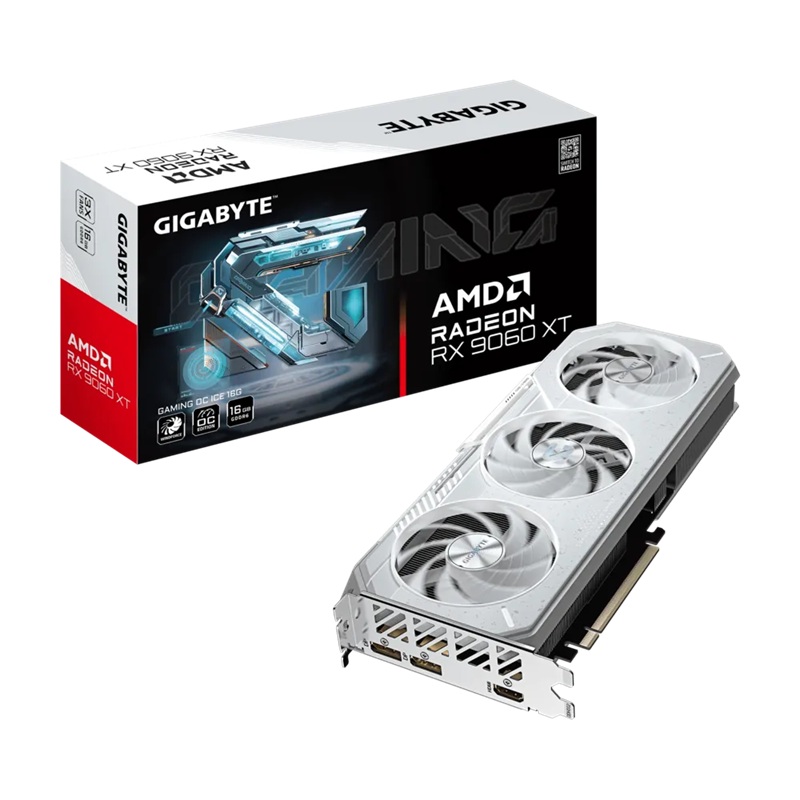

Gigabyte Radeon RX 9060 XT GAMING OC ICE 16G, GDDR6, 3320MHz boost, 2780MHz, 2048 cores, PCIe 5.0, 281mm, 450W, 2x DP 2.1a, HDMI 2.1b

SPECIFICATION
Graphics Processing Radeon RX 9060 XT
Core Clock Boost Clock* : up to 3320 MHz (Reference card: 3130 MHz)
Game Clock* : up to 2780 MHz (Reference card: 2530 MHz)
Stream Processors 2048
Memory Clock 20 Gbps
Memory Size 16GB
Memory Type GDDR6
Memory Bus 128 bit
Card Bus PCI-E 5.0
Digital max resolution 7680 x 4320
Multi-view 3
Card size L=281 W=118 H=40 mm
PCB Form ATX
DirectX DirectX 12 API
OpenGL OpenGL 4.6
Recommended PSU 450W
Power Connectors 8 pin*1
Output DisplayPort 2.1a x2
HDMI 2.1b x1
Accessories VGA manual
Note
* “Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
