Description

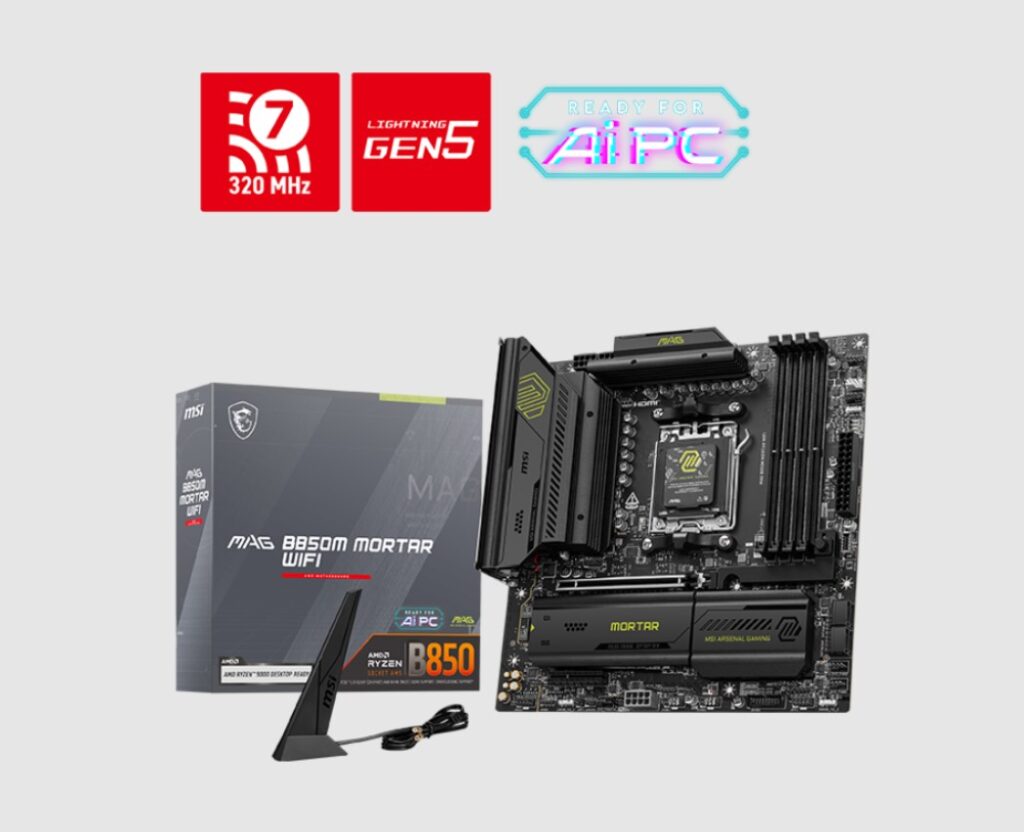

MSI MAG B850M MORTAR WIFI, AM5, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16 slot, 3x M.2,4x USB2.0, 3x USB C, Wi-Fi 7

Chipset
AMD B850

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

Slot
1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

Audio
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

Storage
3x M.2

RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN
Realtek® 8126-VB 5G LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7

LED FEATURE
4x EZ Debug LED

OPERATING SYSTEM
Support for Windows® 11 64-bit
