Description

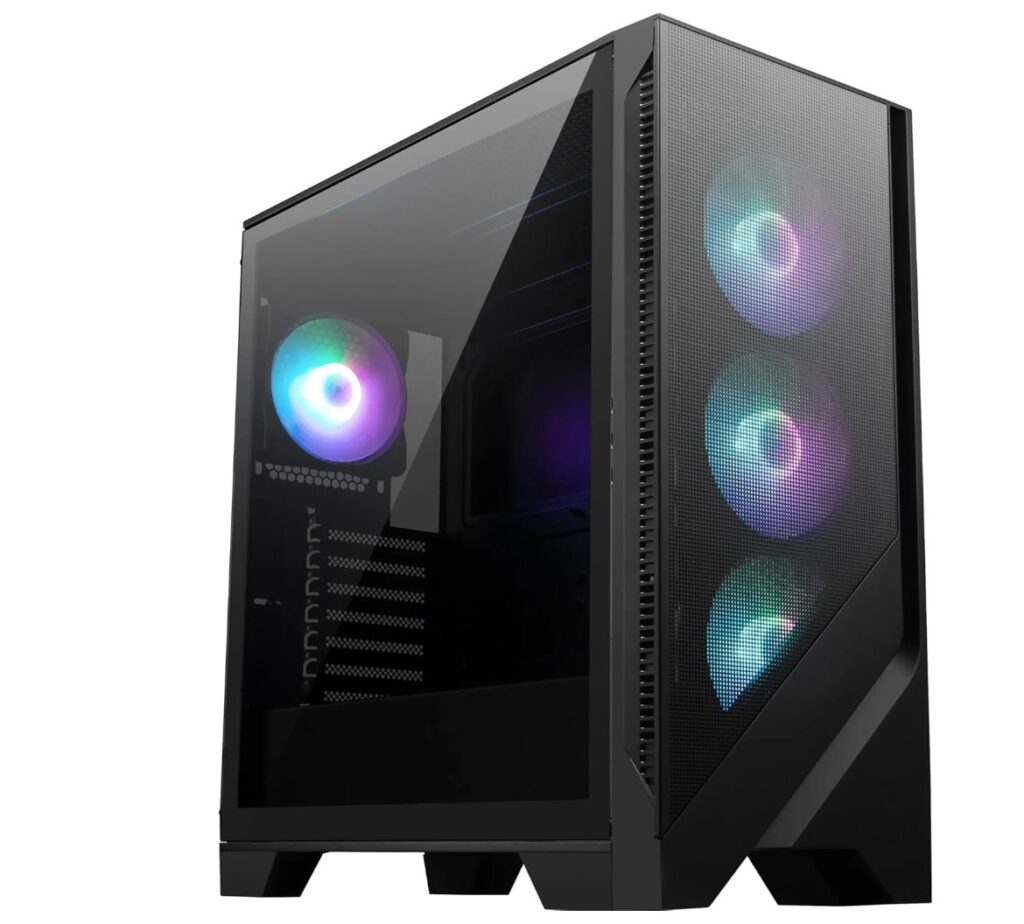

MSI MAG FORGE 320R Micro ATX Case, 2x USB 3.2, 1x Audio, 1x Mic, 1x LED, 1x 2.5′, 2x 2.5’/3.5′, Micro ATX / Mini ITX(NEW)

CASE FORM FACTOR Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT ATX / Micro-ATX / Mini-ITX

I/O PORTS
2 x USB 3.2 Gen 1 Type-A
1 x Audio-out
1 x Mic-in
1 x LED Switch

DRIVE MOUNT SUPPORT 1 x 2.5′, 2 x 2.5′ / 3.5′
EXPANSION SLOTS 7
MAXIMUM GPU LENGTH 390 mm / 15.35 inches
MAXIMUM CPU COOLER HEIGHT 160 mm / 6.29 inches
POWER SUPPLY SUPPORT ATX
MAXIMUM PSU LENGTH 200 mm / 7.87 inches (without 2.5’/3.5′ HDD tray installation)

FAN SIZE SUPPORT
Front: 3 x 120 mm / 2 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
PSU Shroud: 2 x 120 mm

PRE-INSTALLED FAN SIZE Front: 3 x 120 mm, Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE Front: 3 x ARGB Fan, Rear: 1 x ARGB Fan

RADIATOR SIZE SUPPORT
Front: 120 / 140 / 240 mm
Top: 120 / 240 / 280 / 360 mm
Rear: 120 mm

DIMENSIONS (DXWXH) 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches
NET WEIGHT 7.05 kg / 15.54lbs
GROSS WEIGHT 8.35 kg / 18.41lbs
