Description

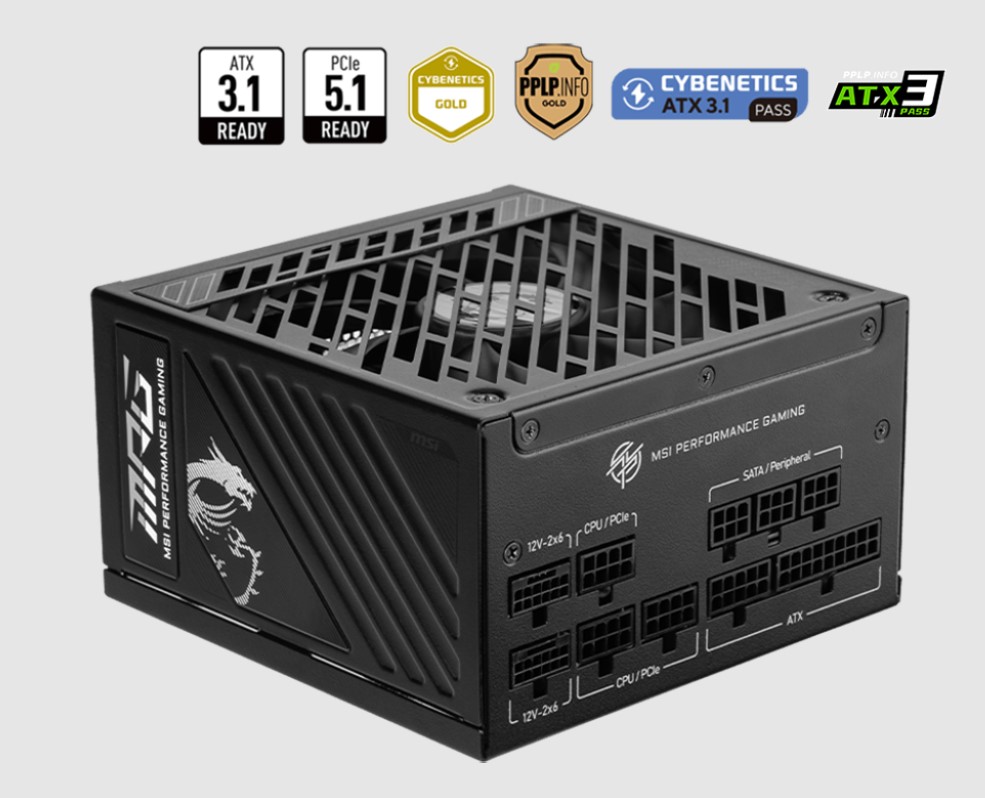

MSI MPG A1000GS PCIE5 1000W ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design

SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 V
Power Watt 1000W
Power Excursion 2350W (*Up To 235% Of The Psu’S Rated Power For 100μs)
Input Frequency Range 50~60 Hz
Protection OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 2 (600W)
Pci-E (6+2 Pin) 1
Sata (15 Pin) 8
Molex (4 Pin) 4
