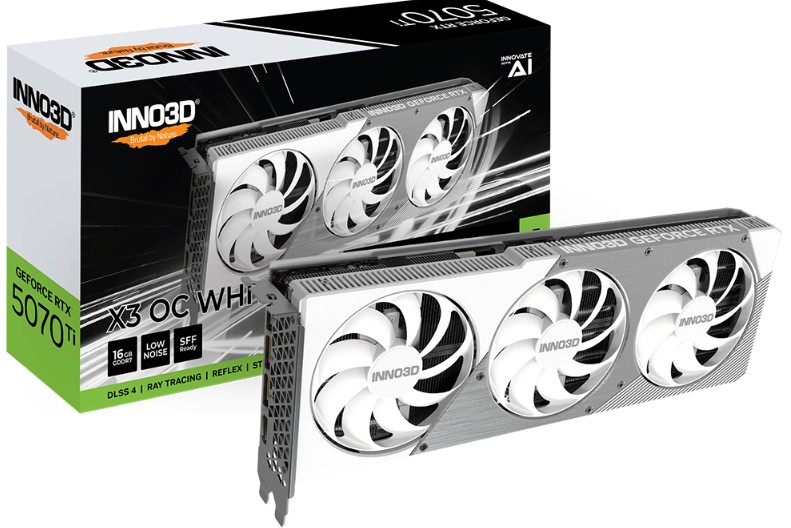

INNO3D nVidia GeForce RTX 5070 TI X3 OC White 16GB GDDR7

GPU Engine Specs
CUDA Cores 8960
Boost Clock (MHz) 2482MHz
Base Clock (MHz) 2295MHz

Thermal and Power Spec
Minimum System Power Requirement (W) 750W
Supplementary Power Connectors 2x PCIe 8-pin cables (adapter in box) OR 300 W or greater PCIe Gen 5 cable

Memory Specs
Memory Clock 28Gbps
Standard Memory Config 16GB
Memory Interface GDDR7
Memory Interface Width 256-bit
Memory Bandwidth (GB/sec) 896 GB/sec

Feature Support
Real-Time Ray Tracing Yes
Ray Tracing Cores 4th Generation, 133 TFLOPS
Tensor Cores 5th Generation, 1406 AI TOPS
NVIDIA Architecture Blackwell
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 4
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI Express Gen 5
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC™-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost™ Yes
Vulkan API 1.4
OpenGL 4.6
NVIDIA Encoder 2x Ninth Generation
NVIDIA Decoder 1x Sixth Generation

Accessories
Graphics Card Dimensions
Length 300mm
Height 116mm
Width 41mm

Display Support
Multi Monitor up to 4
Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
HDCP 2.3
Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b
