Description

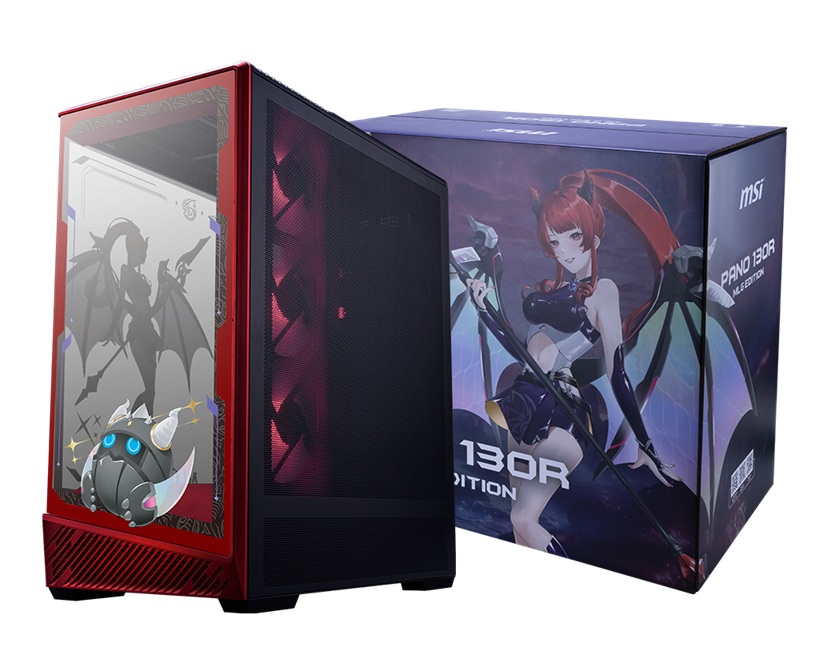

MSI PANO 130R MLG EDITION, Mid-Tower, ATX/M-ATX/ITX, 400mm GPU, 165mm CPU cooler, USB-C 20Gbps, 4 ARGB fans, 360mm rad, PSU 180mm, 7 slots, 3 SSDs

FEATURES
Support Back Back-Connect ATX Motherboard
Compatible with ATX PROJECT ZERO motherboards, allowing easy installation and streamlined cable management by routing cables through the rear.
Upgrade Airflow Layout
This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
Dust Filter
Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup
Pre build with Reverse Blades
Fan installed reverse blade fans on the side allow the unobstructed display of the ARGB fan’s beauty without interference.

SPECIFICATIONS
Product Name PANO 130R MLG EDITION
Case Form Factor Mid-Tower
Motherboard Form Factor
Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
I/O Ports
2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
Drive Mount Support
Up to 3 x 2.5′ SSD
Up to 2 x 3.5′ HDD
(Maximum of 3 drives can be mounted at
once, depending on configuration)
Expansion Slots 7
Maximum GPU Length 400 mm / 15.75 inches
Maximum CPU Cooler Height 165 mm / 6.50 inches
Power Supply Support ATX
Maximum PSU Length 180 mm / 7.09 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm (Above the power
shroud)
Pre-installed Fan Type
Rear: 1 x 120 mm ARGB Fan
Side: 3 x 120 mm ARGB Fan (Reverse
Blade Fan)
Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 1 x 360 mm (Above the power
shroud)
Dimensions (DxWxH) 460 x 232 x 490 mm / 18.11 x 9.25 x
19.29 inches
Net Weight 8.38 kg / 18.47 lbs
Gross Weight 10.5 kg / 23.15 lbs
