Description

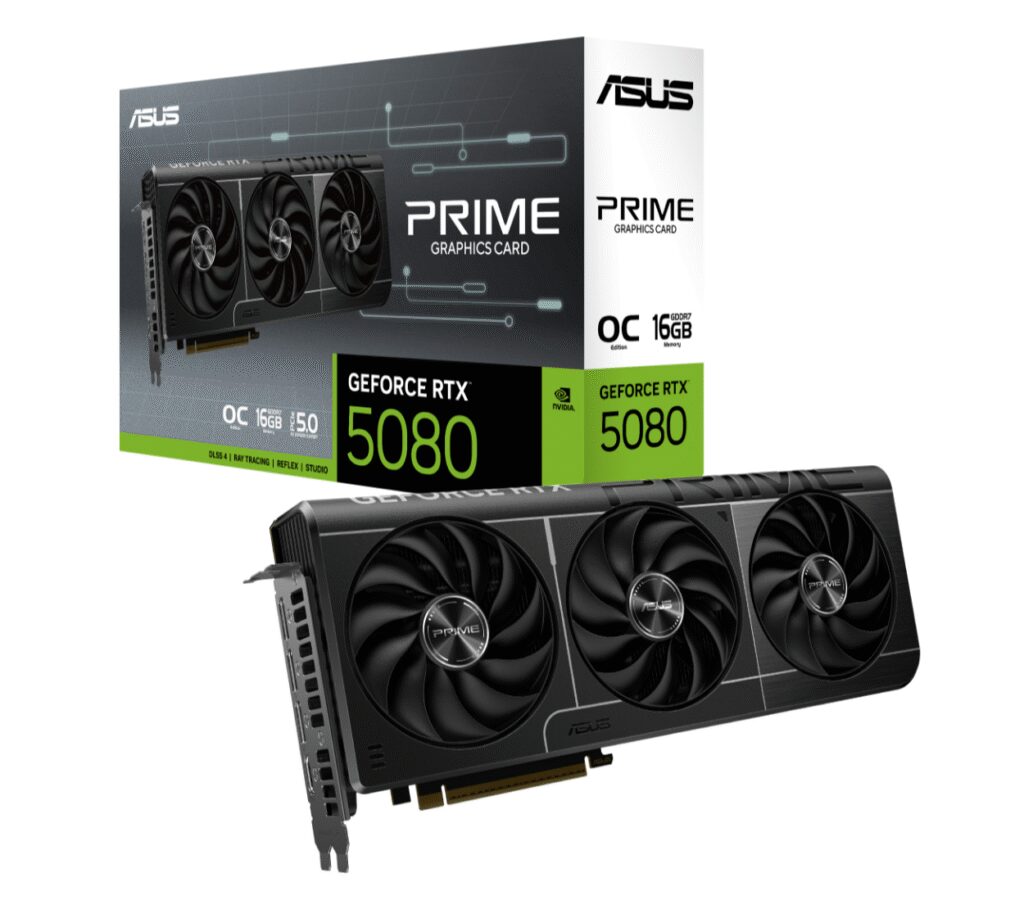

ASUS nVidia GeForce PRIME GeForce RTX™ 5080 16GB GDDR7 OC Edition 16GB GDDR7 2655 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320

Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
1827 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2685 MHz
Default mode: 2655 MHz (Boost Clock)
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)​
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
2.5 Slot
SFF Ready
Compatible

Primed for Power
Experience Primal performance with the Prime GeForce RTX 5080, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow and vapor chamber design for supreme cooling.
