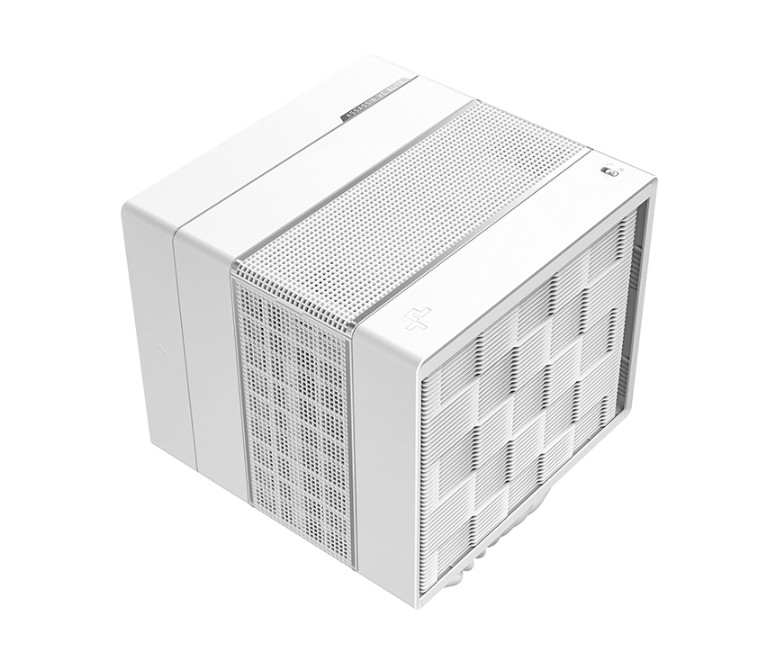

DeepCool ASSASSIN VC ELITE WH

ASSASSIN VC ELITE WHThe ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE WH. With the new white aesthetic, the ASSASSIN VC ELITE WH includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!

Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions 144×147×164 mm(L×W×H)
Heatsink Dimensions 140×110×160 mm(L×W×H)
Net Weight 1772 g
Heatpipe Ø6 mm×7 pcs
Fan Dimensions 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode) 500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode) 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode) 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) ≤29.3 dB(A)
Fan Speed (Quiet Mode) 500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode) 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) ≤22.6 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Motor Type 6-Pole Fan Motor
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A / 0.2 A
Fan Power Consumption 2.4W / 2.4 W
Rated Voltage 12 VDC
Power Consumption(Performance Mode) 4.8 W
Power Consumption(Quiet Mode) 3.6 W
EAN 6.93341E+12
P/N R-ASN4-WHNVNN-GJD
