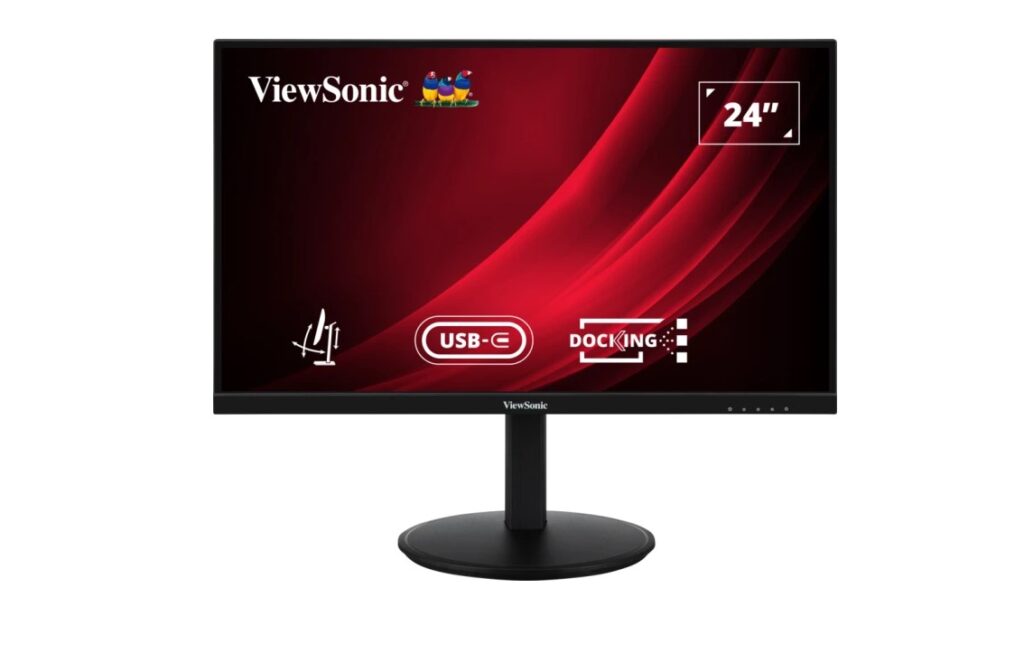

ViewSonic VG2409U-2

ViewSonic 24′ Full HD Ergonomic Docking Monitor with USB-C 65w, USB 3.2 Hub

ViewSonic 24′ Full HD Ergonomic Docking Monitor with USB-C 65w, USB 3.2 Hub, 100hz, HDMI, DP, Ergonomics Height Adjust, Swivel, Pivot, Advanced Wty

SKU MNV-VG2409U-2 Category
SOLD ONLY AS PART OF A DREAM PC BUILD
Price includes GST

Description

The ViewSonic VG2409U-2 is a 24′ FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, DisplayPort, and DisplayPort Out for business and home use. Equipped with 65W USB-C ports, ethernet, and daisy-chain support, the VG2409U-2 serves as a complete integrated docking station for charging, audiovisual and data transfer, and network connectivity, effectively reducing cable clutter. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,300:1 (typ)
Dynamic Contrast Ratio: 50M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Response Time (GTG w/OD): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920×1080
Mac® Resolution (max): 1920×1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920×1080
Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (65W power charger)
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
DisplayPort Out: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
Ethernet LAN (RJ45): 1
Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 12W
Eco Mode (optimized): 13.5W
Consumption (typical): 15.5W
Consumption (max): 19.5W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 112KHz
Frequency Vertical: 48 ~ 100Hz
Video Input
Digital Sync: TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.4), Micro-Packet – Type C
Ergonomics
Height Adjust (mm): 130
Swivel: 360º
Tilt (Forward/Back): -3.5º / 28º
Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 12.3
Net Without Stand (lbs): 7.7
Gross (lbs): 15.9
Weight (metric)
Net (kg): 5.6
Net Without Stand (kg): 3.5
Gross (kg): 7.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.5 x 20.5 x 5.7
Physical (in.): 21.25 x 15.35~20.47 x 9.18
Physical Without Stand (in.): 21.25 x 12.72 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 622 x 520 x 144
Physical (mm): 539.7 x 389.89~519.89 x 233.29
Physical Without Stand (mm): 539.7 x 323.18 x 50.9
General
Regulations: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BIS
PACKAGE CONTENTS: VG2409U-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
