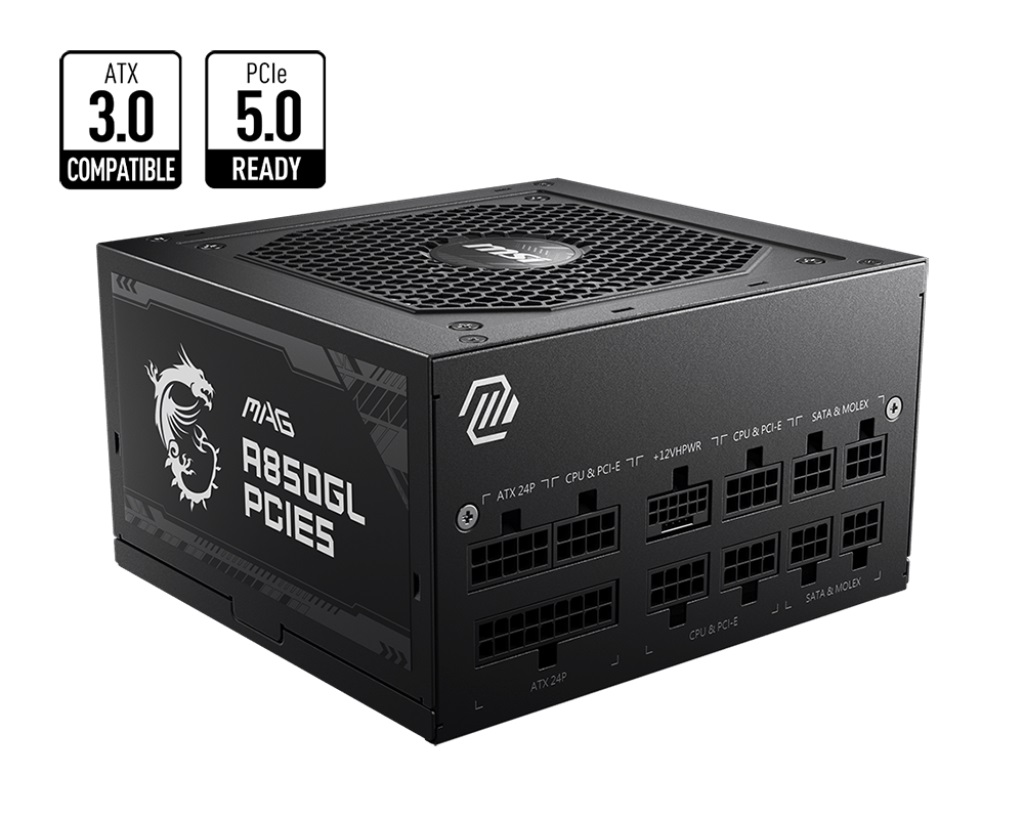

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

Description

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

FEATURES:
ATX 3.0 compatible, native PCIe 5.0 connector
Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS:

EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 850W
POWER EXCURSION 1700W (*up to 200% of the PSU’s rated power for 100μs)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (600W)
PCI-E (6+2 PIN) 4
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1
